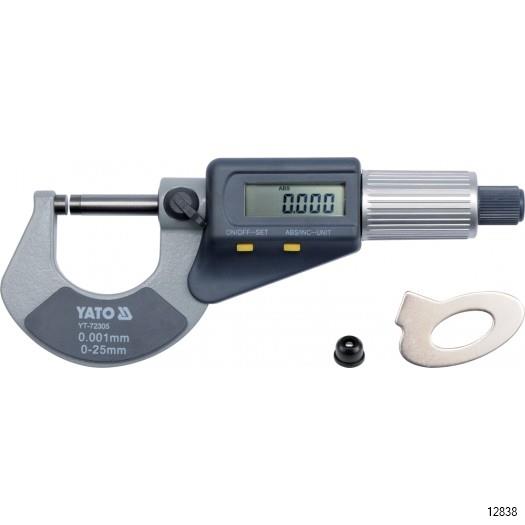

YATO Digital Micrometer is equipped with a steel ball in a rubber mount that allows mounting on the measuring surface of the micrometer. It facilitates the measurement of elements with a small area. After its installation, the indication should be reset according to the procedure.
- High quality digital micrometer for measuring in the range of 0 to 25 mm
- Exact adjustment by an integrated slipping clutch with a rotating bolt and torque
- Digital large LCD display
- Ensure accurate results
- Strap in hammerstone gray finish and features an insulation jacket on the handle
- Thimble and sleeve in matt chrome plated
- Clamping levers on the measuring bar prevents inadvertent manipulation
- Power is supplied by a 1.55 volt battery
- Reading accuracy of 0.001 mm
- Accuracy according to DIN 863
- Measuring range: 0 - 25 mm
- Resolution: 0.001 mm / 0.00005 inch
- Accuracy: ± 0.002 mm / ± 0.0001 inch
- Measuring force: 5 - 10 N
- Display: LCD liquid crystal display
- Current consumption: ≤ 35 μA
- Power supply: one 1.55V silver battery, type SR44
- Operating temperature: 5OC - 40OC / 41OF - 104OF
- Storage temperature: -20OC ÷ 60OC / -4OF ÷ 140OC
- Influence of humidity: irrelevant below 80% relative humidity
Technical data
| Symbol | YT-72305 |
|---|
| EAN | 5906083723056 |
| Brand | Yato |
| Weight (kg) | 0.4750 |
| Master Carton MC | 20 |
| Pal | 640 |
| Material | aluminum, carbon steel |
| Type | Manual |
| Weight [g] | 475
|
