YATO Digital Stud Finder is a professional detector of wires and profiles. It allows to detect in walls or drywall.

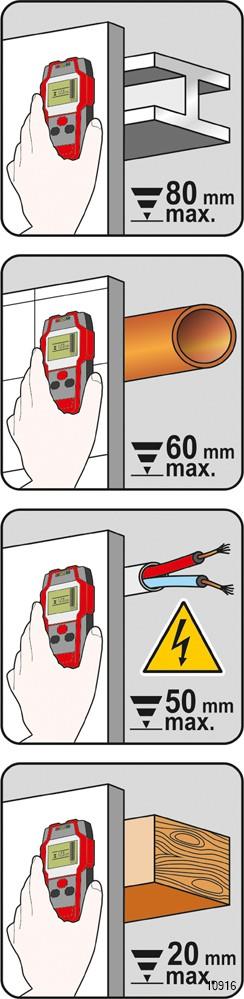

- live cables up to 50 mm
- ferromagnetic metals up to 80 mm
- non-ferrous metals (e.g. copper pipes) up to 60 mm
- wooden construction elements up to 20 mm
The use of this profile detector significantly speeds up the work, increases safety and minimizes the risk of accidental damage to the electrical or plumbing installed under the plaster. Thanks to this, you can safely drill a hole or find a place to screw a screw into a wooden or metal profile hidden under a drywall. It also helps to complete the technical documentation of buildings.

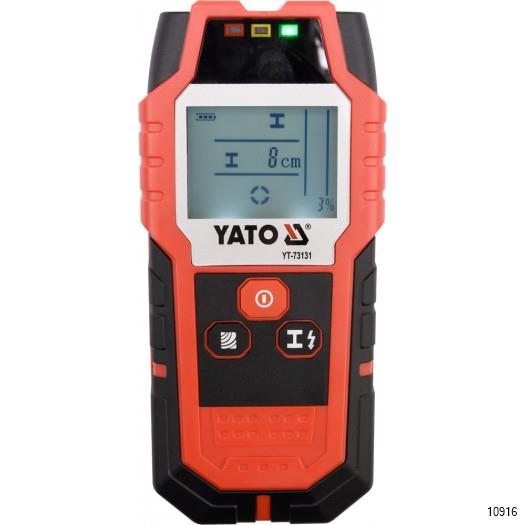

A large and legible display with LED backlight informs us about:
- selected function
- signal strength [%]
- distance from the searched element [cm]
- centric location in relation to the sensor
In addition, the detector has an acoustic signal and three signaling LEDs, in green / orange / red, which additionally indicate the detection of the material being searched. It has an automatic switch-off after 5 minutes to save battery life. On the underside of the detector, there are inserts made of soft material, which protect it from dirt or scratching during contact with the surface. The enclosed carrying case will help you to store the detector properly.
Technical data
| Symbol | YT-73131 |
|---|
| EAN | 5906083731310 |
| Brand | Yato |
| Weight (kg) | 0.3130 |
| Metal detection | Yes |
| Detection of wooden profiles | Yes |
| Detection of live wires | Yes |
| Detection depth for ferromagnetic metals | 80 mm |
| Detection depth of non-ferrous metals | 60 mm |
| Detection depth for live cables | 50 mm |
| Detection depth of wooden profiles | 20 mm
|
