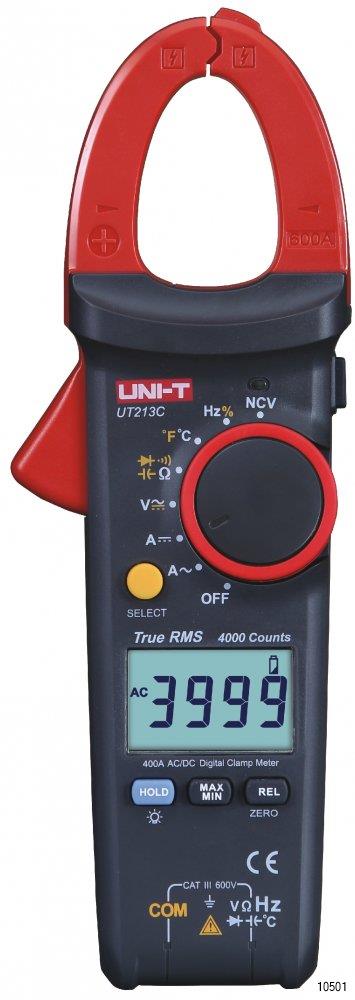

UNI-T DIGITAL CLAMP METER UT213C

UNI-T DIGITAL CLAMP METER 400A UT213C

UT213 series is 400A digital clamp meter with CAT III 600V safety standards. These meters are designed for electricians and HVAC/R technicians. The built-in flashlight also makes these meters useful tools when working in dark environments.

  • Display Count   4000
  • Auto Range   √
  • Jaw Capacity   30mm
  • True RMS   √
  • Diode
  • Around 3.0V
  • NCV   √
  • Data Hold   √
  • Relative Mode   √
  • MAX/MIN   √
  • LCD Backlight   √
  • Flashlight   √
  • Auto Power Off   √
  • Continuity Buzzer   √
  • Low Battery Indication ≤3.6V √
  • Input Protection   √
  • Input Impedance for DCV ≥10MΩ √

Technical data:

  • AC Current (A) 4A/40A/400A
  • 40A/400A ±(2.5%+5)
  • DC Current (A) 40A/400A ±(2.0%+3)
  • AC Voltage (V) 4V/40V/400V/600V ±(1.2%+5)
  • DC Voltage (V) 400mV/4V/40V/400V/600V ±(0.8%+1)
  • Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2)
  • Capacitance (F) 50nF/500nF/5μF/50μF/100μF
  • 40nF/400nF/4μF/40μF/400μF/4mF/40mF ±(4.0%+5)
  • Frequency 10Hz~1MHz ±(0.1%+4)
  • Temperature (℃) -40~1000℃ ±(1.0%+3)
  • Temperature (℉) -40~1832℉ ±(1.0%+6)
