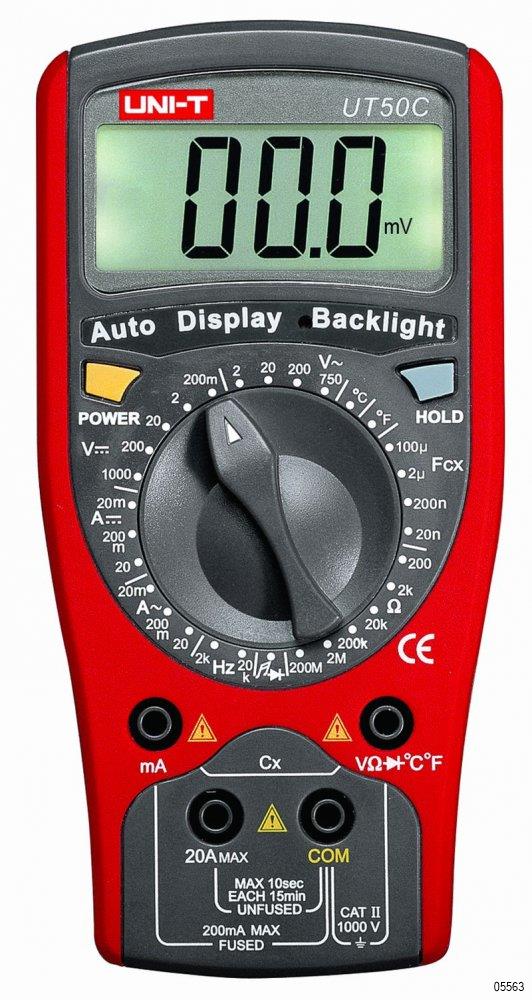

The Meter uses large scale of integrated circuit with double integrated A/D converter as its core and has full range overload protection.

• Diode
• Continuity buzzer
• Data Hold
• Icon display
• Sleep mode
• Low battery display
• Input impedance for DC voltage: 10 MOhm
• Display backlight - auto sensor
• Max. display 1999 (59 x 25mm)

Technical data:

• DC Voltage: 200mV / 2V / 20V / 200V / 1000V - best accuracy: +/- (0.5%+1)
• AC Voltage: 2V / 20V / 200V / 750V - best accuracy: +/- (0.8%+3)
• DC Current: 20mA / 200mA / 20A - best accuracy: +/- (0.8%+1)
• AC Current: 20mA / 200mA / 20A - best accuracy: +/- (1%+3)
• Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 2 MOhm / 200 MOhm - best accuracy: +/- (0.8%+1)
• Capacitance: 20nF / 200nF / 2µF / 100µF - best accuracy: +/- (4%+3)
• Temperature: -40 až +1000°C, -40 až +1832°F - best accuracy: +/- 1%+3 (°C), +/- 1%+4 (°F)
• Frequency: 2kHz / 20kHz - best accuracy: +/- (1.5+5
